1. Material Principles and Morphological Advantages
1.1 Crystal Framework and Chemical Make-up

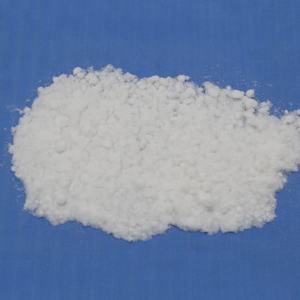

(Spherical alumina)
Round alumina, or spherical aluminum oxide (Al â O TWO), is a synthetically created ceramic product identified by a well-defined globular morphology and a crystalline framework primarily in the alpha (α) stage.
Alpha-alumina, the most thermodynamically stable polymorph, includes a hexagonal close-packed setup of oxygen ions with aluminum ions inhabiting two-thirds of the octahedral interstices, leading to high lattice power and outstanding chemical inertness.
This phase displays outstanding thermal stability, preserving integrity up to 1800 ° C, and withstands reaction with acids, antacid, and molten metals under a lot of industrial problems.
Unlike irregular or angular alumina powders stemmed from bauxite calcination, spherical alumina is engineered via high-temperature processes such as plasma spheroidization or fire synthesis to achieve uniform roundness and smooth surface appearance.
The improvement from angular precursor bits– usually calcined bauxite or gibbsite– to dense, isotropic rounds removes sharp edges and internal porosity, improving packing efficiency and mechanical longevity.
High-purity qualities (â„ 99.5% Al Two O THREE) are important for electronic and semiconductor applications where ionic contamination have to be lessened.
1.2 Fragment Geometry and Packing Actions
The specifying feature of spherical alumina is its near-perfect sphericity, typically quantified by a sphericity index > 0.9, which considerably affects its flowability and packaging thickness in composite systems.
In comparison to angular bits that interlock and produce gaps, spherical particles roll previous one another with very little friction, making it possible for high solids packing during formulation of thermal interface products (TIMs), encapsulants, and potting compounds.
This geometric uniformity permits optimum academic packing densities going beyond 70 vol%, far exceeding the 50– 60 vol% regular of uneven fillers.
Greater filler loading straight equates to improved thermal conductivity in polymer matrices, as the constant ceramic network offers effective phonon transport pathways.
Furthermore, the smooth surface reduces wear on processing devices and decreases viscosity increase during blending, improving processability and diffusion security.
The isotropic nature of rounds likewise prevents orientation-dependent anisotropy in thermal and mechanical buildings, making certain consistent efficiency in all instructions.
2. Synthesis Methods and Quality Assurance
2.1 High-Temperature Spheroidization Strategies
The manufacturing of spherical alumina mostly counts on thermal methods that thaw angular alumina particles and permit surface tension to improve them into rounds.

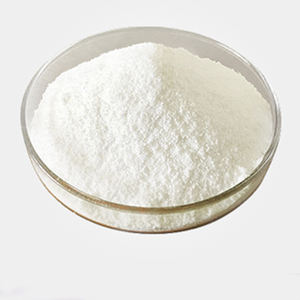

( Spherical alumina)
Plasma spheroidization is one of the most commonly used industrial method, where alumina powder is infused into a high-temperature plasma flame (as much as 10,000 K), triggering immediate melting and surface tension-driven densification into best rounds.
The molten beads solidify quickly throughout flight, creating thick, non-porous fragments with consistent dimension distribution when combined with precise category.
Alternate techniques include flame spheroidization using oxy-fuel lanterns and microwave-assisted home heating, though these normally use reduced throughput or much less control over fragment size.
The beginning product’s pureness and fragment dimension circulation are crucial; submicron or micron-scale forerunners produce alike sized spheres after processing.
Post-synthesis, the item undergoes rigorous sieving, electrostatic separation, and laser diffraction evaluation to make certain tight particle dimension distribution (PSD), usually varying from 1 to 50 ”m relying on application.
2.2 Surface Area Modification and Functional Customizing
To boost compatibility with organic matrices such as silicones, epoxies, and polyurethanes, spherical alumina is commonly surface-treated with combining representatives.
Silane combining agents– such as amino, epoxy, or plastic useful silanes– kind covalent bonds with hydroxyl groups on the alumina surface area while providing organic functionality that engages with the polymer matrix.
This treatment improves interfacial adhesion, minimizes filler-matrix thermal resistance, and prevents agglomeration, causing more homogeneous compounds with exceptional mechanical and thermal efficiency.
Surface coatings can likewise be crafted to impart hydrophobicity, improve diffusion in nonpolar resins, or enable stimuli-responsive behavior in smart thermal materials.
Quality assurance consists of dimensions of BET surface area, tap density, thermal conductivity (usually 25– 35 W/(m · K )for thick α-alumina), and impurity profiling via ICP-MS to leave out Fe, Na, and K at ppm levels.
Batch-to-batch consistency is important for high-reliability applications in electronic devices and aerospace.
3. Thermal and Mechanical Efficiency in Composites
3.1 Thermal Conductivity and User Interface Engineering
Round alumina is mainly employed as a high-performance filler to boost the thermal conductivity of polymer-based products utilized in digital packaging, LED lights, and power modules.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), packing with 60– 70 vol% spherical alumina can raise this to 2– 5 W/(m · K), sufficient for efficient warmth dissipation in portable gadgets.
The high inherent thermal conductivity of α-alumina, integrated with minimal phonon scattering at smooth particle-particle and particle-matrix user interfaces, makes it possible for reliable heat transfer with percolation networks.
Interfacial thermal resistance (Kapitza resistance) remains a restricting variable, yet surface area functionalization and enhanced dispersion strategies aid decrease this obstacle.
In thermal interface materials (TIMs), spherical alumina minimizes get in touch with resistance between heat-generating components (e.g., CPUs, IGBTs) and warmth sinks, protecting against overheating and prolonging device life expectancy.
Its electric insulation (resistivity > 10 ÂčÂČ Î© · centimeters) guarantees safety in high-voltage applications, differentiating it from conductive fillers like metal or graphite.
3.2 Mechanical Stability and Integrity
Beyond thermal efficiency, spherical alumina enhances the mechanical robustness of compounds by enhancing solidity, modulus, and dimensional security.
The round form disperses tension consistently, minimizing split initiation and propagation under thermal biking or mechanical lots.
This is particularly essential in underfill products and encapsulants for flip-chip and 3D-packaged gadgets, where coefficient of thermal growth (CTE) inequality can induce delamination.
By changing filler loading and particle dimension distribution (e.g., bimodal blends), the CTE of the composite can be tuned to match that of silicon or printed circuit card, decreasing thermo-mechanical tension.
Additionally, the chemical inertness of alumina avoids deterioration in moist or destructive environments, guaranteeing long-lasting dependability in automotive, commercial, and outdoor electronic devices.
4. Applications and Technological Advancement
4.1 Electronics and Electric Automobile Equipments
Round alumina is a key enabler in the thermal management of high-power electronics, consisting of insulated gate bipolar transistors (IGBTs), power products, and battery management systems in electric automobiles (EVs).
In EV battery loads, it is incorporated into potting substances and stage adjustment materials to prevent thermal runaway by equally dispersing warmth across cells.
LED makers utilize it in encapsulants and additional optics to maintain lumen outcome and color uniformity by decreasing joint temperature.
In 5G infrastructure and information centers, where warm flux densities are rising, spherical alumina-filled TIMs make sure steady operation of high-frequency chips and laser diodes.
Its role is increasing into advanced packaging modern technologies such as fan-out wafer-level packaging (FOWLP) and ingrained die systems.
4.2 Arising Frontiers and Sustainable Innovation
Future growths concentrate on hybrid filler systems incorporating round alumina with boron nitride, aluminum nitride, or graphene to attain synergistic thermal efficiency while maintaining electrical insulation.
Nano-spherical alumina (sub-100 nm) is being explored for clear porcelains, UV coverings, and biomedical applications, though difficulties in diffusion and cost remain.
Additive manufacturing of thermally conductive polymer compounds making use of spherical alumina makes it possible for complicated, topology-optimized warm dissipation structures.
Sustainability initiatives include energy-efficient spheroidization procedures, recycling of off-spec material, and life-cycle analysis to minimize the carbon footprint of high-performance thermal products.
In recap, spherical alumina stands for an essential crafted product at the crossway of porcelains, compounds, and thermal scientific research.
Its one-of-a-kind combination of morphology, purity, and performance makes it essential in the recurring miniaturization and power accumulation of modern-day electronic and energy systems.
5. Provider
TRUNNANO is a globally recognized Spherical alumina manufacturer and supplier of compounds with more than 12 years of expertise in the highest quality nanomaterials and other chemicals. The company develops a variety of powder materials and chemicals. Provide OEM service. If you need high quality Spherical alumina, please feel free to contact us. You can click on the product to contact us.
