1. Product Features and Structural Integrity
1.1 Inherent Features of Silicon Carbide

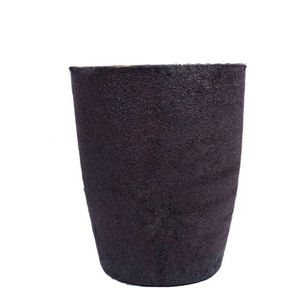

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic compound composed of silicon and carbon atoms arranged in a tetrahedral lattice framework, largely existing in over 250 polytypic forms, with 6H, 4H, and 3C being the most technologically relevant.
Its solid directional bonding imparts phenomenal hardness (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m Ā· K )for pure single crystals), and outstanding chemical inertness, making it among the most robust materials for extreme settings.
The broad bandgap (2.9– 3.3 eV) makes certain exceptional electric insulation at space temperature level and high resistance to radiation damages, while its low thermal expansion coefficient (~ 4.0 Ć 10 ā»ā¶/ K) contributes to premium thermal shock resistance.
These inherent residential properties are preserved even at temperature levels surpassing 1600 Ā° C, permitting SiC to preserve structural integrity under extended exposure to molten steels, slags, and reactive gases.
Unlike oxide porcelains such as alumina, SiC does not react conveniently with carbon or form low-melting eutectics in minimizing atmospheres, a critical benefit in metallurgical and semiconductor handling.
When made right into crucibles– vessels designed to consist of and heat products– SiC outshines conventional products like quartz, graphite, and alumina in both life expectancy and procedure dependability.
1.2 Microstructure and Mechanical Stability
The performance of SiC crucibles is very closely connected to their microstructure, which depends upon the production approach and sintering ingredients used.
Refractory-grade crucibles are commonly created through response bonding, where permeable carbon preforms are penetrated with liquified silicon, creating Ī²-SiC through the reaction Si(l) + C(s) ā SiC(s).
This procedure yields a composite structure of primary SiC with recurring free silicon (5– 10%), which enhances thermal conductivity however might restrict usage above 1414 Ā° C(the melting factor of silicon).
Alternatively, completely sintered SiC crucibles are made through solid-state or liquid-phase sintering using boron and carbon or alumina-yttria ingredients, accomplishing near-theoretical thickness and greater pureness.
These display premium creep resistance and oxidation security yet are extra expensive and difficult to produce in plus sizes.

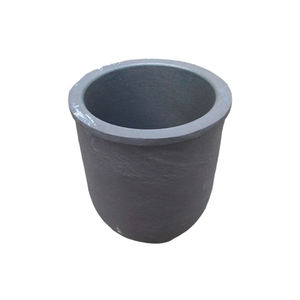

( Silicon Carbide Crucibles)
The fine-grained, interlocking microstructure of sintered SiC provides exceptional resistance to thermal tiredness and mechanical disintegration, vital when handling liquified silicon, germanium, or III-V substances in crystal growth procedures.
Grain border design, including the control of additional phases and porosity, plays an important function in establishing long-term sturdiness under cyclic home heating and aggressive chemical settings.
2. Thermal Performance and Environmental Resistance
2.1 Thermal Conductivity and Warmth Circulation
Among the specifying advantages of SiC crucibles is their high thermal conductivity, which allows quick and consistent heat transfer during high-temperature handling.
In comparison to low-conductivity products like merged silica (1– 2 W/(m Ā· K)), SiC efficiently disperses thermal energy throughout the crucible wall surface, decreasing localized hot spots and thermal gradients.
This uniformity is vital in processes such as directional solidification of multicrystalline silicon for photovoltaics, where temperature level homogeneity directly impacts crystal quality and flaw density.
The mix of high conductivity and reduced thermal expansion leads to a remarkably high thermal shock parameter (R = k(1 ā Ī½)Ī±/ Ļ), making SiC crucibles resistant to breaking throughout rapid heating or cooling cycles.
This allows for faster heater ramp rates, boosted throughput, and decreased downtime because of crucible failing.
Moreover, the product’s ability to endure repeated thermal biking without considerable degradation makes it ideal for set processing in commercial heating systems operating over 1500 Ā° C.
2.2 Oxidation and Chemical Compatibility
At elevated temperatures in air, SiC undertakes easy oxidation, forming a safety layer of amorphous silica (SiO TWO) on its surface: SiC + 3/2 O TWO ā SiO ā + CO.
This glazed layer densifies at high temperatures, acting as a diffusion barrier that reduces additional oxidation and maintains the underlying ceramic framework.
Nonetheless, in minimizing ambiences or vacuum cleaner conditions– common in semiconductor and metal refining– oxidation is reduced, and SiC stays chemically secure versus liquified silicon, aluminum, and numerous slags.
It withstands dissolution and response with molten silicon as much as 1410 Ā° C, although prolonged exposure can lead to mild carbon pick-up or user interface roughening.
Crucially, SiC does not introduce metallic contaminations into sensitive melts, an essential requirement for electronic-grade silicon manufacturing where contamination by Fe, Cu, or Cr must be maintained listed below ppb degrees.
However, care should be taken when refining alkaline earth metals or extremely responsive oxides, as some can wear away SiC at extreme temperatures.
3. Production Processes and Quality Assurance
3.1 Construction Techniques and Dimensional Control
The manufacturing of SiC crucibles involves shaping, drying, and high-temperature sintering or seepage, with techniques selected based on required pureness, size, and application.
Common forming strategies include isostatic pressing, extrusion, and slide spreading, each using different levels of dimensional precision and microstructural uniformity.
For large crucibles made use of in solar ingot casting, isostatic pressing guarantees constant wall surface thickness and thickness, decreasing the threat of asymmetric thermal growth and failing.
Reaction-bonded SiC (RBSC) crucibles are cost-efficient and commonly utilized in factories and solar sectors, though recurring silicon limitations optimal solution temperature level.
Sintered SiC (SSiC) variations, while much more expensive, offer premium purity, strength, and resistance to chemical assault, making them suitable for high-value applications like GaAs or InP crystal development.
Precision machining after sintering might be required to attain tight tolerances, especially for crucibles used in upright gradient freeze (VGF) or Czochralski (CZ) systems.
Surface completing is vital to minimize nucleation websites for defects and ensure smooth thaw circulation throughout spreading.
3.2 Quality Control and Performance Validation
Rigorous quality control is essential to make sure dependability and long life of SiC crucibles under demanding operational problems.
Non-destructive examination methods such as ultrasonic testing and X-ray tomography are employed to spot interior cracks, gaps, or density variants.
Chemical analysis through XRF or ICP-MS confirms reduced degrees of metal pollutants, while thermal conductivity and flexural toughness are measured to validate product consistency.
Crucibles are commonly based on substitute thermal biking tests before shipment to identify possible failure settings.
Batch traceability and accreditation are common in semiconductor and aerospace supply chains, where part failing can cause expensive manufacturing losses.
4. Applications and Technical Influence
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play a pivotal role in the production of high-purity silicon for both microelectronics and solar cells.
In directional solidification heaters for multicrystalline photovoltaic ingots, large SiC crucibles function as the key container for liquified silicon, withstanding temperatures above 1500 Ā° C for numerous cycles.
Their chemical inertness stops contamination, while their thermal stability makes sure consistent solidification fronts, bring about higher-quality wafers with fewer dislocations and grain boundaries.
Some producers layer the internal surface with silicon nitride or silica to even more decrease attachment and assist in ingot release after cooling.
In research-scale Czochralski development of compound semiconductors, smaller SiC crucibles are used to hold melts of GaAs, InSb, or CdTe, where minimal reactivity and dimensional security are extremely important.
4.2 Metallurgy, Factory, and Emerging Technologies
Past semiconductors, SiC crucibles are vital in metal refining, alloy preparation, and laboratory-scale melting procedures entailing light weight aluminum, copper, and precious metals.
Their resistance to thermal shock and erosion makes them perfect for induction and resistance heaters in factories, where they last longer than graphite and alumina options by several cycles.
In additive manufacturing of responsive steels, SiC containers are used in vacuum induction melting to prevent crucible malfunction and contamination.
Emerging applications consist of molten salt activators and focused solar power systems, where SiC vessels might contain high-temperature salts or liquid metals for thermal energy storage.
With recurring developments in sintering modern technology and layer design, SiC crucibles are positioned to sustain next-generation materials handling, enabling cleaner, more effective, and scalable commercial thermal systems.
In summary, silicon carbide crucibles stand for a crucial making it possible for innovation in high-temperature product synthesis, combining remarkable thermal, mechanical, and chemical performance in a single crafted element.
Their prevalent fostering throughout semiconductor, solar, and metallurgical markets underscores their role as a keystone of contemporary industrial ceramics.
