1. Product Basics and Architectural Properties
1.1 Crystal Chemistry and Polymorphism

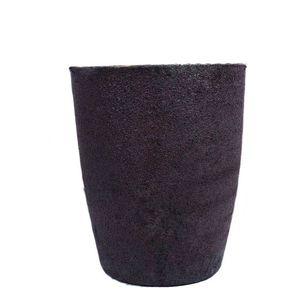

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms organized in a tetrahedral lattice, creating among one of the most thermally and chemically robust materials recognized.
It exists in over 250 polytypic kinds, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most appropriate for high-temperature applications.
The solid Si– C bonds, with bond energy going beyond 300 kJ/mol, confer phenomenal solidity, thermal conductivity, and resistance to thermal shock and chemical attack.
In crucible applications, sintered or reaction-bonded SiC is chosen due to its ability to maintain architectural stability under severe thermal slopes and harsh liquified settings.
Unlike oxide ceramics, SiC does not undertake turbulent phase shifts approximately its sublimation point (~ 2700 ° C), making it optimal for continual procedure above 1600 ° C.
1.2 Thermal and Mechanical Efficiency
A defining attribute of SiC crucibles is their high thermal conductivity– varying from 80 to 120 W/(m · K)– which advertises consistent warm circulation and reduces thermal stress and anxiety throughout rapid heating or cooling.
This building contrasts greatly with low-conductivity porcelains like alumina (â 30 W/(m · K)), which are vulnerable to splitting under thermal shock.
SiC also exhibits exceptional mechanical stamina at elevated temperature levels, maintaining over 80% of its room-temperature flexural stamina (as much as 400 MPa) also at 1400 ° C.
Its reduced coefficient of thermal expansion (~ 4.0 Ă 10 â»â¶/ K) additionally boosts resistance to thermal shock, an essential consider duplicated biking in between ambient and functional temperatures.
Additionally, SiC shows premium wear and abrasion resistance, ensuring long life span in atmospheres involving mechanical handling or unstable melt circulation.
2. Production Methods and Microstructural Control

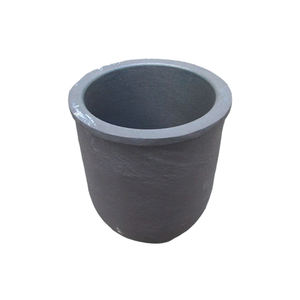

( Silicon Carbide Crucibles)
2.1 Sintering Strategies and Densification Approaches
Commercial SiC crucibles are mainly produced with pressureless sintering, response bonding, or hot pressing, each offering distinct benefits in price, purity, and performance.
Pressureless sintering entails compacting fine SiC powder with sintering aids such as boron and carbon, followed by high-temperature treatment (2000– 2200 ° C )in inert ambience to attain near-theoretical thickness.
This method returns high-purity, high-strength crucibles ideal for semiconductor and advanced alloy handling.
Reaction-bonded SiC (RBSC) is produced by penetrating a porous carbon preform with molten silicon, which responds to create ÎČ-SiC sitting, resulting in a composite of SiC and residual silicon.
While somewhat lower in thermal conductivity due to metallic silicon incorporations, RBSC uses superb dimensional security and lower production cost, making it prominent for large-scale commercial usage.
Hot-pressed SiC, though a lot more costly, gives the highest density and purity, booked for ultra-demanding applications such as single-crystal development.
2.2 Surface High Quality and Geometric Precision
Post-sintering machining, consisting of grinding and lapping, makes sure precise dimensional tolerances and smooth inner surfaces that minimize nucleation sites and lower contamination risk.
Surface area roughness is carefully controlled to stop thaw attachment and facilitate simple release of strengthened products.
Crucible geometry– such as wall surface thickness, taper angle, and lower curvature– is optimized to stabilize thermal mass, structural stamina, and compatibility with heater heating elements.
Custom styles accommodate certain thaw quantities, home heating accounts, and material sensitivity, ensuring optimal performance throughout diverse industrial processes.
Advanced quality assurance, consisting of X-ray diffraction, scanning electron microscopy, and ultrasonic testing, validates microstructural homogeneity and lack of problems like pores or cracks.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Aggressive Atmospheres
SiC crucibles display extraordinary resistance to chemical strike by molten steels, slags, and non-oxidizing salts, surpassing typical graphite and oxide porcelains.
They are secure in contact with molten aluminum, copper, silver, and their alloys, standing up to wetting and dissolution because of low interfacial energy and development of protective surface oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles protect against metal contamination that could weaken electronic buildings.
Nevertheless, under extremely oxidizing conditions or in the visibility of alkaline changes, SiC can oxidize to develop silica (SiO TWO), which may respond better to form low-melting-point silicates.
Consequently, SiC is ideal fit for neutral or decreasing environments, where its stability is taken full advantage of.
3.2 Limitations and Compatibility Considerations
Despite its robustness, SiC is not universally inert; it reacts with particular liquified products, specifically iron-group metals (Fe, Ni, Carbon monoxide) at heats through carburization and dissolution procedures.
In molten steel handling, SiC crucibles break down quickly and are therefore stayed clear of.
Similarly, alkali and alkaline earth steels (e.g., Li, Na, Ca) can minimize SiC, releasing carbon and creating silicides, restricting their usage in battery material synthesis or responsive metal casting.
For liquified glass and ceramics, SiC is typically suitable yet may present trace silicon right into extremely sensitive optical or electronic glasses.
Comprehending these material-specific communications is crucial for picking the suitable crucible kind and guaranteeing procedure purity and crucible long life.
4. Industrial Applications and Technical Advancement
4.1 Metallurgy, Semiconductor, and Renewable Resource Sectors
SiC crucibles are important in the production of multicrystalline and monocrystalline silicon ingots for solar cells, where they withstand extended direct exposure to molten silicon at ~ 1420 ° C.
Their thermal stability makes sure consistent condensation and minimizes misplacement thickness, directly influencing photovoltaic or pv performance.
In shops, SiC crucibles are used for melting non-ferrous steels such as light weight aluminum and brass, offering longer service life and decreased dross development compared to clay-graphite alternatives.
They are likewise employed in high-temperature lab for thermogravimetric analysis, differential scanning calorimetry, and synthesis of innovative ceramics and intermetallic compounds.
4.2 Future Trends and Advanced Material Combination
Emerging applications include using SiC crucibles in next-generation nuclear materials screening and molten salt activators, where their resistance to radiation and molten fluorides is being assessed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y â O FIVE) are being put on SiC surface areas to further improve chemical inertness and avoid silicon diffusion in ultra-high-purity processes.
Additive manufacturing of SiC parts using binder jetting or stereolithography is under development, appealing complex geometries and fast prototyping for specialized crucible styles.
As demand grows for energy-efficient, durable, and contamination-free high-temperature handling, silicon carbide crucibles will continue to be a foundation innovation in advanced materials manufacturing.
In conclusion, silicon carbide crucibles stand for an essential making it possible for component in high-temperature industrial and scientific procedures.
Their unequaled combination of thermal stability, mechanical stamina, and chemical resistance makes them the product of choice for applications where performance and integrity are critical.
