1. Composition and Structural Properties of Fused Quartz
1.1 Amorphous Network and Thermal Stability

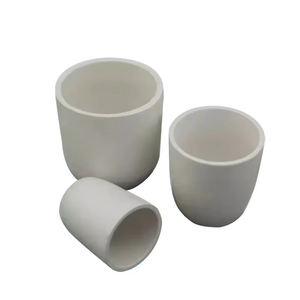

(Quartz Crucibles)
Quartz crucibles are high-temperature containers made from fused silica, a synthetic form of silicon dioxide (SiO ₂) stemmed from the melting of all-natural quartz crystals at temperatures surpassing 1700 ° C.
Unlike crystalline quartz, merged silica has an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which conveys outstanding thermal shock resistance and dimensional security under fast temperature level modifications.
This disordered atomic structure stops cleavage along crystallographic aircrafts, making fused silica much less susceptible to cracking during thermal cycling contrasted to polycrystalline porcelains.
The product exhibits a reduced coefficient of thermal growth (~ 0.5 × 10 ⁻⁶/ K), one of the lowest amongst engineering products, enabling it to stand up to severe thermal gradients without fracturing– an essential property in semiconductor and solar cell manufacturing.
Fused silica also maintains excellent chemical inertness against most acids, molten metals, and slags, although it can be slowly etched by hydrofluoric acid and warm phosphoric acid.
Its high softening point (~ 1600– 1730 ° C, depending on pureness and OH content) enables continual procedure at raised temperature levels required for crystal growth and metal refining processes.
1.2 Purity Grading and Micronutrient Control
The performance of quartz crucibles is highly depending on chemical pureness, specifically the concentration of metallic pollutants such as iron, salt, potassium, light weight aluminum, and titanium.
Even trace quantities (parts per million level) of these impurities can migrate into molten silicon throughout crystal growth, weakening the electric homes of the resulting semiconductor material.
High-purity grades utilized in electronic devices producing generally consist of over 99.95% SiO ₂, with alkali metal oxides restricted to much less than 10 ppm and shift steels below 1 ppm.
Pollutants originate from raw quartz feedstock or processing tools and are lessened through cautious selection of mineral sources and filtration methods like acid leaching and flotation protection.
In addition, the hydroxyl (OH) content in integrated silica impacts its thermomechanical actions; high-OH types provide better UV transmission but lower thermal security, while low-OH variants are preferred for high-temperature applications because of decreased bubble development.
( Quartz Crucibles)
2. Manufacturing Process and Microstructural Layout
2.1 Electrofusion and Creating Methods
Quartz crucibles are primarily produced by means of electrofusion, a process in which high-purity quartz powder is fed into a turning graphite mold and mildew within an electrical arc furnace.
An electrical arc created between carbon electrodes melts the quartz particles, which strengthen layer by layer to develop a smooth, thick crucible form.
This approach produces a fine-grained, uniform microstructure with minimal bubbles and striae, necessary for consistent warmth distribution and mechanical stability.
Different approaches such as plasma fusion and fire combination are utilized for specialized applications calling for ultra-low contamination or specific wall surface density profiles.
After casting, the crucibles go through controlled air conditioning (annealing) to eliminate internal tensions and avoid spontaneous fracturing during solution.
Surface area ending up, including grinding and polishing, makes sure dimensional precision and lowers nucleation websites for unwanted formation throughout usage.
2.2 Crystalline Layer Engineering and Opacity Control
A defining feature of contemporary quartz crucibles, particularly those made use of in directional solidification of multicrystalline silicon, is the engineered inner layer structure.
Throughout production, the internal surface area is often dealt with to advertise the formation of a thin, controlled layer of cristobalite– a high-temperature polymorph of SiO ₂– upon very first home heating.
This cristobalite layer serves as a diffusion obstacle, decreasing straight communication in between molten silicon and the underlying integrated silica, consequently reducing oxygen and metal contamination.
In addition, the presence of this crystalline stage improves opacity, boosting infrared radiation absorption and promoting even more uniform temperature level distribution within the thaw.
Crucible developers very carefully balance the density and connection of this layer to avoid spalling or fracturing due to quantity modifications during stage transitions.
3. Useful Performance in High-Temperature Applications
3.1 Role in Silicon Crystal Growth Processes
Quartz crucibles are essential in the manufacturing of monocrystalline and multicrystalline silicon, serving as the primary container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped into liquified silicon held in a quartz crucible and gradually pulled upward while revolving, permitting single-crystal ingots to develop.
Although the crucible does not directly contact the growing crystal, communications in between molten silicon and SiO ₂ walls result in oxygen dissolution into the melt, which can affect carrier lifetime and mechanical strength in ended up wafers.
In DS processes for photovoltaic-grade silicon, large quartz crucibles allow the regulated air conditioning of countless kilograms of molten silicon right into block-shaped ingots.
Here, layers such as silicon nitride (Si six N ₄) are applied to the inner surface area to stop bond and assist in simple release of the solidified silicon block after cooling down.
3.2 Deterioration Devices and Life Span Limitations
Despite their toughness, quartz crucibles degrade throughout duplicated high-temperature cycles because of a number of interrelated mechanisms.
Thick flow or deformation happens at long term exposure over 1400 ° C, resulting in wall surface thinning and loss of geometric integrity.
Re-crystallization of merged silica into cristobalite generates internal anxieties because of volume development, potentially creating cracks or spallation that pollute the thaw.
Chemical erosion develops from reduction responses between liquified silicon and SiO ₂: SiO ₂ + Si → 2SiO(g), generating volatile silicon monoxide that leaves and compromises the crucible wall.
Bubble development, driven by entraped gases or OH teams, additionally endangers structural toughness and thermal conductivity.
These destruction pathways limit the variety of reuse cycles and demand precise process control to take full advantage of crucible lifespan and product yield.
4. Emerging Developments and Technological Adaptations
4.1 Coatings and Compound Adjustments
To improve performance and durability, progressed quartz crucibles integrate useful layers and composite structures.
Silicon-based anti-sticking layers and doped silica finishes improve release attributes and lower oxygen outgassing throughout melting.
Some makers incorporate zirconia (ZrO ₂) particles right into the crucible wall surface to boost mechanical strength and resistance to devitrification.
Research is continuous right into completely clear or gradient-structured crucibles developed to enhance convected heat transfer in next-generation solar heating system layouts.
4.2 Sustainability and Recycling Obstacles
With enhancing demand from the semiconductor and photovoltaic industries, lasting use quartz crucibles has become a top priority.
Used crucibles polluted with silicon deposit are challenging to recycle as a result of cross-contamination dangers, bring about considerable waste generation.
Efforts concentrate on establishing reusable crucible liners, improved cleansing protocols, and closed-loop recycling systems to recuperate high-purity silica for second applications.
As gadget efficiencies require ever-higher material purity, the function of quartz crucibles will continue to evolve with advancement in materials scientific research and procedure engineering.
In summary, quartz crucibles represent a critical interface in between basic materials and high-performance digital items.
Their special combination of purity, thermal strength, and architectural design allows the manufacture of silicon-based innovations that power modern computer and renewable energy systems.
