1. Basic Chemistry and Crystallographic Style of Boron Carbide
1.1 Molecular Make-up and Structural Complexity

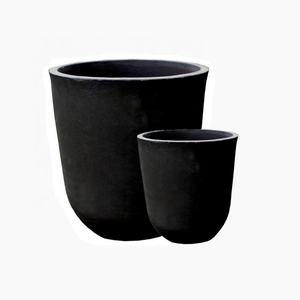

(Boron Carbide Ceramic)
Boron carbide (B FOUR C) stands as one of the most interesting and technically vital ceramic products as a result of its distinct combination of extreme hardness, low thickness, and exceptional neutron absorption capacity.
Chemically, it is a non-stoichiometric substance primarily made up of boron and carbon atoms, with an idealized formula of B FOUR C, though its real structure can range from B FOUR C to B ₁₀. FIVE C, showing a broad homogeneity range controlled by the substitution devices within its facility crystal latticework.
The crystal structure of boron carbide belongs to the rhombohedral system (area team R3̄m), characterized by a three-dimensional network of 12-atom icosahedra– clusters of boron atoms– linked by direct C-B-C or C-C chains along the trigonal axis.
These icosahedra, each containing 11 boron atoms and 1 carbon atom (B ₁₁ C), are covalently adhered through extremely strong B– B, B– C, and C– C bonds, contributing to its exceptional mechanical strength and thermal security.
The presence of these polyhedral units and interstitial chains presents structural anisotropy and intrinsic defects, which influence both the mechanical habits and electronic homes of the material.
Unlike less complex porcelains such as alumina or silicon carbide, boron carbide’s atomic architecture allows for significant configurational adaptability, allowing defect development and cost distribution that affect its efficiency under tension and irradiation.
1.2 Physical and Electronic Qualities Developing from Atomic Bonding
The covalent bonding network in boron carbide results in among the greatest well-known solidity values amongst artificial products– second only to ruby and cubic boron nitride– typically varying from 30 to 38 GPa on the Vickers hardness scale.
Its thickness is remarkably reduced (~ 2.52 g/cm FOUR), making it approximately 30% lighter than alumina and virtually 70% lighter than steel, an essential benefit in weight-sensitive applications such as personal armor and aerospace elements.
Boron carbide displays exceptional chemical inertness, standing up to assault by a lot of acids and alkalis at area temperature level, although it can oxidize above 450 ° C in air, developing boric oxide (B TWO O ₃) and co2, which might endanger structural integrity in high-temperature oxidative settings.
It possesses a wide bandgap (~ 2.1 eV), identifying it as a semiconductor with prospective applications in high-temperature electronics and radiation detectors.
Additionally, its high Seebeck coefficient and reduced thermal conductivity make it a candidate for thermoelectric power conversion, specifically in extreme atmospheres where traditional products fail.
(Boron Carbide Ceramic)
The material also demonstrates exceptional neutron absorption due to the high neutron capture cross-section of the ¹⁰ B isotope (approximately 3837 barns for thermal neutrons), providing it essential in nuclear reactor control rods, securing, and invested fuel storage space systems.
2. Synthesis, Handling, and Difficulties in Densification
2.1 Industrial Manufacturing and Powder Construction Techniques
Boron carbide is primarily created via high-temperature carbothermal reduction of boric acid (H THREE BO TWO) or boron oxide (B TWO O ₃) with carbon resources such as oil coke or charcoal in electric arc furnaces running over 2000 ° C.
The reaction continues as: 2B TWO O TWO + 7C → B FOUR C + 6CO, producing coarse, angular powders that call for considerable milling to achieve submicron bit sizes ideal for ceramic handling.
Different synthesis routes consist of self-propagating high-temperature synthesis (SHS), laser-induced chemical vapor deposition (CVD), and plasma-assisted methods, which provide better control over stoichiometry and particle morphology yet are much less scalable for industrial use.
Due to its extreme firmness, grinding boron carbide right into fine powders is energy-intensive and susceptible to contamination from crushing media, necessitating making use of boron carbide-lined mills or polymeric grinding help to protect pureness.
The resulting powders should be meticulously classified and deagglomerated to make sure consistent packing and efficient sintering.
2.2 Sintering Limitations and Advanced Combination Approaches
A significant difficulty in boron carbide ceramic manufacture is its covalent bonding nature and low self-diffusion coefficient, which seriously restrict densification throughout traditional pressureless sintering.
Also at temperature levels approaching 2200 ° C, pressureless sintering generally yields porcelains with 80– 90% of academic thickness, leaving recurring porosity that degrades mechanical strength and ballistic performance.
To conquer this, advanced densification techniques such as warm pressing (HP) and warm isostatic pushing (HIP) are employed.
Hot pressing uses uniaxial pressure (usually 30– 50 MPa) at temperature levels in between 2100 ° C and 2300 ° C, promoting particle reformation and plastic deformation, allowing thickness going beyond 95%.
HIP additionally improves densification by using isostatic gas pressure (100– 200 MPa) after encapsulation, getting rid of shut pores and attaining near-full thickness with improved fracture sturdiness.
Ingredients such as carbon, silicon, or transition steel borides (e.g., TiB ₂, CrB ₂) are often introduced in little quantities to boost sinterability and inhibit grain development, though they might slightly minimize solidity or neutron absorption performance.
Regardless of these breakthroughs, grain border weakness and intrinsic brittleness continue to be relentless challenges, particularly under vibrant packing conditions.
3. Mechanical Actions and Performance Under Extreme Loading Conditions
3.1 Ballistic Resistance and Failing Systems
Boron carbide is commonly recognized as a premier material for light-weight ballistic defense in body armor, lorry plating, and aircraft shielding.
Its high solidity enables it to effectively wear down and warp inbound projectiles such as armor-piercing bullets and pieces, dissipating kinetic energy via systems consisting of crack, microcracking, and local phase transformation.
However, boron carbide shows a phenomenon called “amorphization under shock,” where, under high-velocity influence (typically > 1.8 km/s), the crystalline structure falls down right into a disordered, amorphous phase that lacks load-bearing ability, causing catastrophic failure.
This pressure-induced amorphization, observed through in-situ X-ray diffraction and TEM research studies, is attributed to the breakdown of icosahedral systems and C-B-C chains under extreme shear stress.
Efforts to minimize this consist of grain improvement, composite style (e.g., B ₄ C-SiC), and surface finish with pliable steels to postpone fracture breeding and consist of fragmentation.
3.2 Use Resistance and Commercial Applications
Past protection, boron carbide’s abrasion resistance makes it optimal for commercial applications entailing extreme wear, such as sandblasting nozzles, water jet cutting tips, and grinding media.
Its solidity considerably surpasses that of tungsten carbide and alumina, leading to prolonged service life and decreased maintenance expenses in high-throughput production environments.
Parts made from boron carbide can run under high-pressure unpleasant flows without quick destruction, although care has to be required to prevent thermal shock and tensile stresses during procedure.
Its usage in nuclear atmospheres also extends to wear-resistant parts in fuel handling systems, where mechanical durability and neutron absorption are both required.
4. Strategic Applications in Nuclear, Aerospace, and Emerging Technologies
4.1 Neutron Absorption and Radiation Protecting Equipments
Among one of the most essential non-military applications of boron carbide remains in atomic energy, where it works as a neutron-absorbing product in control rods, closure pellets, and radiation shielding frameworks.
Due to the high abundance of the ¹⁰ B isotope (normally ~ 20%, however can be improved to > 90%), boron carbide successfully catches thermal neutrons by means of the ¹⁰ B(n, α)seven Li reaction, producing alpha fragments and lithium ions that are quickly consisted of within the material.
This response is non-radioactive and generates marginal long-lived by-products, making boron carbide safer and much more secure than options like cadmium or hafnium.
It is made use of in pressurized water activators (PWRs), boiling water reactors (BWRs), and research reactors, typically in the type of sintered pellets, clad tubes, or composite panels.
Its stability under neutron irradiation and capacity to keep fission products enhance reactor safety and operational durability.
4.2 Aerospace, Thermoelectrics, and Future Material Frontiers
In aerospace, boron carbide is being explored for usage in hypersonic lorry leading sides, where its high melting factor (~ 2450 ° C), reduced density, and thermal shock resistance deal benefits over metallic alloys.
Its potential in thermoelectric devices comes from its high Seebeck coefficient and reduced thermal conductivity, enabling direct conversion of waste heat into power in severe atmospheres such as deep-space probes or nuclear-powered systems.
Research is likewise underway to develop boron carbide-based compounds with carbon nanotubes or graphene to boost durability and electrical conductivity for multifunctional architectural electronics.
Furthermore, its semiconductor residential properties are being leveraged in radiation-hardened sensors and detectors for area and nuclear applications.
In summary, boron carbide ceramics represent a foundation product at the intersection of extreme mechanical performance, nuclear engineering, and progressed production.
Its unique combination of ultra-high solidity, low density, and neutron absorption capacity makes it irreplaceable in defense and nuclear technologies, while ongoing study continues to broaden its utility into aerospace, power conversion, and next-generation compounds.
As processing techniques boost and new composite designs arise, boron carbide will continue to be at the forefront of products development for the most requiring technological obstacles.
