1. The Product Foundation and Crystallographic Identification of Alumina Ceramics
1.1 Atomic Style and Stage Security

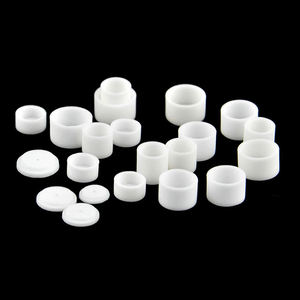

(Alumina Ceramics)
Alumina ceramics, primarily made up of light weight aluminum oxide (Al two O THREE), represent one of the most extensively used courses of advanced ceramics as a result of their phenomenal equilibrium of mechanical strength, thermal resilience, and chemical inertness.
At the atomic degree, the performance of alumina is rooted in its crystalline structure, with the thermodynamically steady alpha stage (α-Al ₂ O THREE) being the leading kind used in engineering applications.
This phase takes on a rhombohedral crystal system within the hexagonal close-packed (HCP) lattice, where oxygen anions create a dense setup and light weight aluminum cations occupy two-thirds of the octahedral interstitial sites.
The resulting structure is very secure, contributing to alumina’s high melting factor of approximately 2072 ° C and its resistance to decay under extreme thermal and chemical problems.
While transitional alumina phases such as gamma (γ), delta (δ), and theta (θ) exist at reduced temperature levels and exhibit higher surface areas, they are metastable and irreversibly transform right into the alpha phase upon home heating above 1100 ° C, making α-Al ₂ O ₃ the special phase for high-performance architectural and useful parts.
1.2 Compositional Grading and Microstructural Engineering
The buildings of alumina ceramics are not fixed yet can be customized with controlled variations in pureness, grain size, and the enhancement of sintering help.
High-purity alumina (≥ 99.5% Al ₂ O THREE) is utilized in applications demanding maximum mechanical stamina, electric insulation, and resistance to ion diffusion, such as in semiconductor handling and high-voltage insulators.
Lower-purity qualities (ranging from 85% to 99% Al Two O ₃) commonly integrate additional stages like mullite (3Al ₂ O FOUR · 2SiO ₂) or lustrous silicates, which boost sinterability and thermal shock resistance at the expenditure of firmness and dielectric performance.
An essential factor in performance optimization is grain size control; fine-grained microstructures, accomplished through the enhancement of magnesium oxide (MgO) as a grain growth inhibitor, significantly boost crack strength and flexural strength by restricting crack proliferation.
Porosity, even at low levels, has a destructive effect on mechanical honesty, and totally thick alumina ceramics are commonly created using pressure-assisted sintering strategies such as hot pressing or warm isostatic pressing (HIP).
The interaction between composition, microstructure, and processing specifies the useful envelope within which alumina ceramics operate, enabling their use across a huge spectrum of industrial and technological domains.

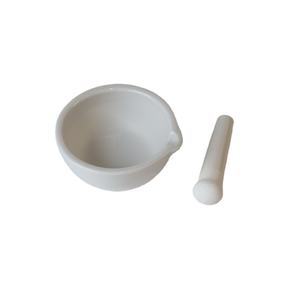

( Alumina Ceramics)
2. Mechanical and Thermal Efficiency in Demanding Environments
2.1 Strength, Firmness, and Wear Resistance
Alumina porcelains show an unique combination of high firmness and modest fracture strength, making them optimal for applications involving rough wear, disintegration, and influence.
With a Vickers firmness usually ranging from 15 to 20 GPa, alumina rankings among the hardest design materials, surpassed just by ruby, cubic boron nitride, and certain carbides.
This severe firmness translates into remarkable resistance to damaging, grinding, and bit impingement, which is exploited in elements such as sandblasting nozzles, cutting tools, pump seals, and wear-resistant linings.
Flexural strength worths for thick alumina variety from 300 to 500 MPa, relying on pureness and microstructure, while compressive strength can exceed 2 GPa, allowing alumina components to endure high mechanical loads without contortion.
Despite its brittleness– a typical quality among ceramics– alumina’s efficiency can be enhanced through geometric layout, stress-relief functions, and composite support methods, such as the unification of zirconia bits to cause improvement toughening.
2.2 Thermal Habits and Dimensional Stability
The thermal residential properties of alumina porcelains are main to their use in high-temperature and thermally cycled environments.
With a thermal conductivity of 20– 30 W/m · K– more than many polymers and comparable to some steels– alumina successfully dissipates warm, making it appropriate for warm sinks, shielding substrates, and heating system elements.
Its reduced coefficient of thermal development (~ 8 × 10 ⁻⁶/ K) guarantees marginal dimensional adjustment during heating and cooling, lowering the threat of thermal shock splitting.
This security is specifically beneficial in applications such as thermocouple defense tubes, ignition system insulators, and semiconductor wafer managing systems, where exact dimensional control is critical.
Alumina preserves its mechanical stability as much as temperature levels of 1600– 1700 ° C in air, past which creep and grain border sliding may launch, relying on pureness and microstructure.
In vacuum or inert environments, its performance prolongs even additionally, making it a preferred product for space-based instrumentation and high-energy physics experiments.
3. Electrical and Dielectric Qualities for Advanced Technologies
3.1 Insulation and High-Voltage Applications
Among the most substantial functional features of alumina porcelains is their exceptional electric insulation ability.
With a quantity resistivity going beyond 10 ¹⁴ Ω · centimeters at room temperature and a dielectric toughness of 10– 15 kV/mm, alumina acts as a reliable insulator in high-voltage systems, consisting of power transmission equipment, switchgear, and electronic product packaging.
Its dielectric constant (εᵣ ≈ 9– 10 at 1 MHz) is relatively steady throughout a vast regularity array, making it appropriate for usage in capacitors, RF elements, and microwave substratums.
Low dielectric loss (tan δ < 0.0005) guarantees very little power dissipation in rotating present (AC) applications, enhancing system performance and minimizing warm generation.
In printed circuit boards (PCBs) and crossbreed microelectronics, alumina substratums give mechanical support and electrical isolation for conductive traces, enabling high-density circuit combination in severe atmospheres.
3.2 Efficiency in Extreme and Sensitive Environments
Alumina ceramics are distinctively suited for usage in vacuum cleaner, cryogenic, and radiation-intensive settings due to their reduced outgassing prices and resistance to ionizing radiation.
In fragment accelerators and combination reactors, alumina insulators are used to isolate high-voltage electrodes and analysis sensing units without presenting pollutants or weakening under prolonged radiation direct exposure.
Their non-magnetic nature likewise makes them excellent for applications entailing solid electromagnetic fields, such as magnetic resonance imaging (MRI) systems and superconducting magnets.
Moreover, alumina’s biocompatibility and chemical inertness have brought about its fostering in clinical gadgets, consisting of oral implants and orthopedic elements, where long-lasting stability and non-reactivity are extremely important.
4. Industrial, Technological, and Emerging Applications
4.1 Role in Industrial Equipment and Chemical Processing
Alumina porcelains are thoroughly utilized in commercial devices where resistance to put on, rust, and heats is essential.
Components such as pump seals, shutoff seats, nozzles, and grinding media are typically produced from alumina as a result of its capability to stand up to abrasive slurries, hostile chemicals, and elevated temperatures.
In chemical handling plants, alumina cellular linings shield activators and pipelines from acid and antacid assault, expanding tools life and minimizing upkeep prices.
Its inertness likewise makes it appropriate for use in semiconductor construction, where contamination control is important; alumina chambers and wafer watercrafts are revealed to plasma etching and high-purity gas environments without seeping pollutants.
4.2 Assimilation right into Advanced Manufacturing and Future Technologies
Beyond traditional applications, alumina ceramics are playing a progressively vital function in emerging technologies.
In additive manufacturing, alumina powders are made use of in binder jetting and stereolithography (SLA) refines to fabricate complex, high-temperature-resistant components for aerospace and energy systems.
Nanostructured alumina movies are being explored for catalytic assistances, sensing units, and anti-reflective finishings as a result of their high surface area and tunable surface chemistry.
In addition, alumina-based compounds, such as Al ₂ O TWO-ZrO ₂ or Al Two O FOUR-SiC, are being developed to get rid of the integral brittleness of monolithic alumina, offering enhanced toughness and thermal shock resistance for next-generation structural materials.
As markets continue to press the borders of performance and reliability, alumina ceramics remain at the leading edge of product technology, bridging the space between architectural robustness and useful versatility.
In summary, alumina ceramics are not simply a class of refractory products however a cornerstone of contemporary engineering, allowing technical progression across power, electronics, health care, and commercial automation.
Their one-of-a-kind combination of buildings– rooted in atomic framework and fine-tuned with sophisticated handling– guarantees their ongoing importance in both developed and emerging applications.
As product science progresses, alumina will certainly continue to be a crucial enabler of high-performance systems running beside physical and environmental extremes.
