1. The Scientific research and Framework of Alumina Porcelain Materials
1.1 Crystallography and Compositional Versions of Light Weight Aluminum Oxide

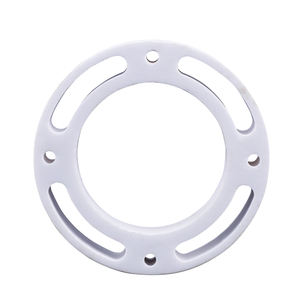

(Alumina Ceramics Rings)
Alumina ceramic rings are manufactured from light weight aluminum oxide (Al ₂ O TWO), a substance renowned for its outstanding equilibrium of mechanical strength, thermal stability, and electric insulation.
The most thermodynamically secure and industrially pertinent stage of alumina is the alpha (α) phase, which crystallizes in a hexagonal close-packed (HCP) structure coming from the diamond family.
In this setup, oxygen ions create a thick latticework with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial sites, resulting in an extremely steady and durable atomic framework.
While pure alumina is in theory 100% Al Two O SIX, industrial-grade materials usually contain tiny portions of ingredients such as silica (SiO TWO), magnesia (MgO), or yttria (Y ₂ O FOUR) to manage grain growth throughout sintering and improve densification.
Alumina ceramics are identified by purity levels: 96%, 99%, and 99.8% Al ₂ O two prevail, with greater purity associating to enhanced mechanical homes, thermal conductivity, and chemical resistance.
The microstructure– particularly grain size, porosity, and phase circulation– plays a vital duty in establishing the last efficiency of alumina rings in service settings.
1.2 Key Physical and Mechanical Characteristic
Alumina ceramic rings display a collection of homes that make them important sought after commercial setups.
They possess high compressive stamina (approximately 3000 MPa), flexural strength (commonly 350– 500 MPa), and excellent solidity (1500– 2000 HV), making it possible for resistance to wear, abrasion, and contortion under load.
Their reduced coefficient of thermal expansion (roughly 7– 8 × 10 ⁻⁶/ K) makes certain dimensional stability across large temperature varieties, decreasing thermal stress and anxiety and fracturing throughout thermal cycling.
Thermal conductivity varieties from 20 to 30 W/m · K, depending on pureness, allowing for moderate heat dissipation– adequate for lots of high-temperature applications without the need for energetic cooling.

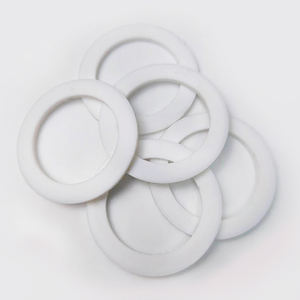

( Alumina Ceramics Ring)
Electrically, alumina is an impressive insulator with a quantity resistivity going beyond 10 ¹⁴ Ω · centimeters and a dielectric toughness of around 10– 15 kV/mm, making it ideal for high-voltage insulation parts.
Moreover, alumina demonstrates excellent resistance to chemical attack from acids, alkalis, and molten metals, although it is susceptible to attack by strong alkalis and hydrofluoric acid at elevated temperature levels.
2. Manufacturing and Accuracy Design of Alumina Rings
2.1 Powder Handling and Forming Methods
The manufacturing of high-performance alumina ceramic rings starts with the selection and preparation of high-purity alumina powder.
Powders are typically synthesized via calcination of aluminum hydroxide or via progressed techniques like sol-gel handling to accomplish great particle size and slim size distribution.
To form the ring geometry, a number of shaping techniques are used, consisting of:
Uniaxial pressing: where powder is compacted in a die under high stress to create a “green” ring.
Isostatic pressing: using consistent pressure from all instructions utilizing a fluid tool, resulting in higher thickness and more consistent microstructure, especially for complex or big rings.
Extrusion: ideal for lengthy cylindrical types that are later cut into rings, typically used for lower-precision applications.
Shot molding: made use of for complex geometries and limited tolerances, where alumina powder is mixed with a polymer binder and infused right into a mold and mildew.
Each technique affects the final thickness, grain alignment, and problem circulation, requiring mindful procedure selection based on application needs.
2.2 Sintering and Microstructural Advancement
After shaping, the environment-friendly rings undertake high-temperature sintering, commonly between 1500 ° C and 1700 ° C in air or controlled ambiences.
Throughout sintering, diffusion devices drive particle coalescence, pore elimination, and grain development, resulting in a fully thick ceramic body.
The price of heating, holding time, and cooling account are exactly regulated to avoid breaking, warping, or overstated grain development.
Additives such as MgO are often introduced to prevent grain boundary mobility, causing a fine-grained microstructure that enhances mechanical toughness and integrity.
Post-sintering, alumina rings might undertake grinding and splashing to accomplish limited dimensional tolerances ( ± 0.01 mm) and ultra-smooth surface coatings (Ra < 0.1 µm), crucial for sealing, birthing, and electric insulation applications.
3. Useful Efficiency and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are widely made use of in mechanical systems due to their wear resistance and dimensional stability.
Trick applications consist of:
Securing rings in pumps and shutoffs, where they resist erosion from abrasive slurries and corrosive liquids in chemical handling and oil & gas industries.
Birthing components in high-speed or destructive atmospheres where metal bearings would degrade or need constant lubrication.
Overview rings and bushings in automation equipment, using reduced friction and long life span without the demand for oiling.
Put on rings in compressors and turbines, decreasing clearance in between revolving and fixed components under high-pressure conditions.
Their capacity to keep efficiency in completely dry or chemically aggressive environments makes them above several metal and polymer choices.
3.2 Thermal and Electrical Insulation Functions
In high-temperature and high-voltage systems, alumina rings work as essential shielding parts.
They are used as:
Insulators in heating elements and heater elements, where they support repellent wires while withstanding temperature levels above 1400 ° C.
Feedthrough insulators in vacuum cleaner and plasma systems, avoiding electrical arcing while preserving hermetic seals.
Spacers and assistance rings in power electronics and switchgear, separating conductive components in transformers, breaker, and busbar systems.
Dielectric rings in RF and microwave tools, where their reduced dielectric loss and high malfunction strength make sure signal stability.
The combination of high dielectric toughness and thermal security enables alumina rings to function dependably in settings where natural insulators would certainly weaken.
4. Product Improvements and Future Expectation
4.1 Composite and Doped Alumina Solutions
To better improve efficiency, scientists and makers are creating advanced alumina-based compounds.
Examples include:
Alumina-zirconia (Al Two O TWO-ZrO TWO) composites, which exhibit boosted fracture strength with improvement toughening devices.
Alumina-silicon carbide (Al ₂ O SIX-SiC) nanocomposites, where nano-sized SiC bits enhance hardness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can modify grain boundary chemistry to enhance high-temperature stamina and oxidation resistance.
These hybrid materials prolong the functional envelope of alumina rings into even more extreme problems, such as high-stress dynamic loading or fast thermal biking.
4.2 Emerging Fads and Technological Combination
The future of alumina ceramic rings hinges on clever integration and precision production.
Trends include:
Additive manufacturing (3D printing) of alumina elements, making it possible for intricate internal geometries and customized ring designs formerly unreachable via traditional methods.
Functional grading, where composition or microstructure differs throughout the ring to maximize efficiency in different areas (e.g., wear-resistant outer layer with thermally conductive core).
In-situ tracking through ingrained sensors in ceramic rings for predictive maintenance in industrial machinery.
Increased use in renewable energy systems, such as high-temperature fuel cells and concentrated solar energy plants, where product dependability under thermal and chemical tension is critical.
As markets require higher performance, longer lifespans, and reduced maintenance, alumina ceramic rings will certainly remain to play a pivotal function in making it possible for next-generation engineering solutions.
