1. Architectural Characteristics and Distinct Bonding Nature
1.1 Crystal Architecture and Layered Atomic Arrangement

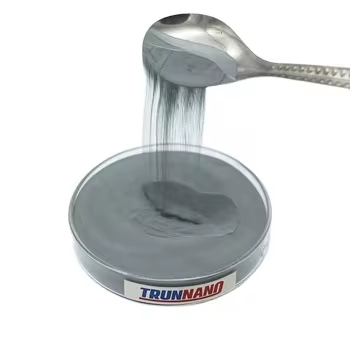

(Ti₃AlC₂ powder)
Ti four AlC two belongs to a distinct class of layered ternary porcelains known as MAX stages, where “M” signifies an early transition steel, “A” stands for an A-group (mainly IIIA or IVA) aspect, and “X” means carbon and/or nitrogen.
Its hexagonal crystal framework (space group P6 THREE/ mmc) includes alternating layers of edge-sharing Ti six C octahedra and aluminum atoms organized in a nanolaminate fashion: Ti– C– Ti– Al– Ti– C– Ti, forming a 312-type MAX stage.
This gotten piling results in strong covalent Ti– C bonds within the shift steel carbide layers, while the Al atoms live in the A-layer, adding metallic-like bonding qualities.
The mix of covalent, ionic, and metal bonding endows Ti ₃ AlC ₂ with an uncommon hybrid of ceramic and metal residential properties, identifying it from conventional monolithic ceramics such as alumina or silicon carbide.
High-resolution electron microscopy exposes atomically sharp interfaces between layers, which assist in anisotropic physical habits and one-of-a-kind contortion systems under stress.
This layered design is crucial to its damages resistance, enabling mechanisms such as kink-band development, delamination, and basic airplane slip– unusual in breakable ceramics.
1.2 Synthesis and Powder Morphology Control
Ti six AlC two powder is generally manufactured via solid-state reaction paths, including carbothermal decrease, hot pushing, or spark plasma sintering (SPS), beginning with essential or compound precursors such as Ti, Al, and carbon black or TiC.
A typical response pathway is: 3Ti + Al + 2C → Ti Five AlC ₂, performed under inert atmosphere at temperatures in between 1200 ° C and 1500 ° C to avoid aluminum evaporation and oxide formation.
To get great, phase-pure powders, precise stoichiometric control, prolonged milling times, and enhanced heating profiles are important to subdue completing phases like TiC, TiAl, or Ti â‚‚ AlC.
Mechanical alloying followed by annealing is widely used to enhance sensitivity and homogeneity at the nanoscale.
The resulting powder morphology– varying from angular micron-sized particles to plate-like crystallites– depends on handling criteria and post-synthesis grinding.
Platelet-shaped fragments mirror the intrinsic anisotropy of the crystal structure, with larger dimensions along the basal airplanes and slim piling in the c-axis instructions.
Advanced characterization through X-ray diffraction (XRD), scanning electron microscopy (SEM), and energy-dispersive X-ray spectroscopy (EDS) makes sure stage purity, stoichiometry, and particle dimension circulation suitable for downstream applications.
2. Mechanical and Practical Properties
2.1 Damages Resistance and Machinability

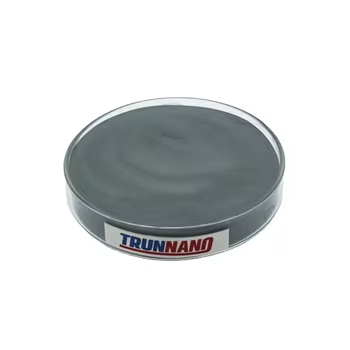

( Ti₃AlC₂ powder)
One of one of the most exceptional functions of Ti ₃ AlC two powder is its extraordinary damage tolerance, a residential property rarely found in traditional ceramics.
Unlike fragile products that crack catastrophically under lots, Ti ₃ AlC ₂ shows pseudo-ductility with systems such as microcrack deflection, grain pull-out, and delamination along weak Al-layer user interfaces.
This allows the material to soak up power prior to failure, causing greater fracture strength– usually ranging from 7 to 10 MPa · m ONE/ TWO– contrasted to
