1. Fundamental Composition and Architectural Features of Quartz Ceramics
1.1 Chemical Pureness and Crystalline-to-Amorphous Transition

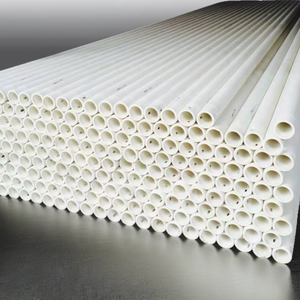

(Quartz Ceramics)
Quartz porcelains, likewise called merged silica or merged quartz, are a course of high-performance not natural products originated from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) type.
Unlike conventional ceramics that rely upon polycrystalline frameworks, quartz porcelains are differentiated by their complete lack of grain boundaries due to their glazed, isotropic network of SiO ₄ tetrahedra interconnected in a three-dimensional arbitrary network.
This amorphous structure is attained with high-temperature melting of all-natural quartz crystals or artificial silica forerunners, followed by rapid cooling to stop formation.
The resulting product contains generally over 99.9% SiO TWO, with trace impurities such as alkali metals (Na ⁺, K ⁺), aluminum, and iron kept at parts-per-million levels to maintain optical quality, electric resistivity, and thermal performance.
The lack of long-range order eliminates anisotropic behavior, making quartz ceramics dimensionally stable and mechanically uniform in all directions– a critical advantage in accuracy applications.
1.2 Thermal Behavior and Resistance to Thermal Shock
Among the most defining features of quartz porcelains is their remarkably low coefficient of thermal expansion (CTE), normally around 0.55 × 10 ⁻⁶/ K in between 20 ° C and 300 ° C.
This near-zero growth emerges from the versatile Si– O– Si bond angles in the amorphous network, which can change under thermal stress without breaking, enabling the product to stand up to rapid temperature level changes that would certainly crack standard porcelains or metals.
Quartz ceramics can withstand thermal shocks exceeding 1000 ° C, such as straight immersion in water after warming to heated temperatures, without cracking or spalling.
This property makes them important in atmospheres involving repeated home heating and cooling down cycles, such as semiconductor processing heating systems, aerospace elements, and high-intensity illumination systems.
Furthermore, quartz ceramics keep architectural stability as much as temperature levels of around 1100 ° C in continual service, with short-term direct exposure resistance approaching 1600 ° C in inert environments.
( Quartz Ceramics)
Beyond thermal shock resistance, they exhibit high softening temperatures (~ 1600 ° C )and superb resistance to devitrification– though prolonged exposure above 1200 ° C can launch surface crystallization right into cristobalite, which might jeopardize mechanical strength because of volume changes during phase shifts.
2. Optical, Electrical, and Chemical Properties of Fused Silica Equipment
2.1 Broadband Openness and Photonic Applications
Quartz ceramics are renowned for their outstanding optical transmission across a large spooky variety, expanding from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This transparency is enabled by the absence of impurities and the homogeneity of the amorphous network, which reduces light scattering and absorption.
High-purity synthetic integrated silica, produced by means of flame hydrolysis of silicon chlorides, attains also higher UV transmission and is used in essential applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The material’s high laser damage limit– withstanding break down under intense pulsed laser irradiation– makes it optimal for high-energy laser systems made use of in blend research study and industrial machining.
Additionally, its low autofluorescence and radiation resistance guarantee dependability in scientific instrumentation, consisting of spectrometers, UV curing systems, and nuclear monitoring gadgets.
2.2 Dielectric Efficiency and Chemical Inertness
From an electric perspective, quartz porcelains are superior insulators with quantity resistivity going beyond 10 ¹⁸ Ω · centimeters at room temperature level and a dielectric constant of around 3.8 at 1 MHz.
Their reduced dielectric loss tangent (tan δ < 0.0001) ensures marginal power dissipation in high-frequency and high-voltage applications, making them appropriate for microwave home windows, radar domes, and shielding substratums in digital settings up.
These residential properties stay stable over a wide temperature variety, unlike many polymers or standard ceramics that deteriorate electrically under thermal stress.
Chemically, quartz porcelains exhibit exceptional inertness to most acids, including hydrochloric, nitric, and sulfuric acids, because of the stability of the Si– O bond.
However, they are susceptible to strike by hydrofluoric acid (HF) and strong alkalis such as warm salt hydroxide, which break the Si– O– Si network.
This discerning reactivity is manipulated in microfabrication procedures where regulated etching of merged silica is called for.
In hostile industrial settings– such as chemical processing, semiconductor wet benches, and high-purity fluid handling– quartz porcelains function as liners, view glasses, and reactor components where contamination have to be lessened.
3. Manufacturing Processes and Geometric Engineering of Quartz Ceramic Components
3.1 Melting and Forming Techniques
The manufacturing of quartz porcelains includes a number of specialized melting approaches, each tailored to specific purity and application needs.
Electric arc melting makes use of high-purity quartz sand melted in a water-cooled copper crucible under vacuum or inert gas, producing large boules or tubes with superb thermal and mechanical properties.
Fire combination, or burning synthesis, involves burning silicon tetrachloride (SiCl ₄) in a hydrogen-oxygen fire, depositing great silica particles that sinter into a transparent preform– this approach generates the highest optical high quality and is made use of for synthetic fused silica.
Plasma melting uses an alternative route, offering ultra-high temperatures and contamination-free processing for specific niche aerospace and defense applications.
When thawed, quartz ceramics can be shaped with accuracy spreading, centrifugal forming (for tubes), or CNC machining of pre-sintered blanks.
Due to their brittleness, machining needs diamond devices and mindful control to prevent microcracking.
3.2 Accuracy Construction and Surface Area Ending Up
Quartz ceramic parts are often made right into complicated geometries such as crucibles, tubes, poles, home windows, and customized insulators for semiconductor, photovoltaic, and laser industries.
Dimensional accuracy is important, particularly in semiconductor production where quartz susceptors and bell containers must maintain specific alignment and thermal uniformity.
Surface area ending up plays a crucial function in performance; sleek surfaces decrease light spreading in optical components and lessen nucleation websites for devitrification in high-temperature applications.
Engraving with buffered HF options can produce regulated surface structures or get rid of harmed layers after machining.
For ultra-high vacuum cleaner (UHV) systems, quartz porcelains are cleaned up and baked to remove surface-adsorbed gases, making certain marginal outgassing and compatibility with sensitive processes like molecular light beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Duty in Semiconductor and Photovoltaic Manufacturing
Quartz ceramics are fundamental materials in the fabrication of incorporated circuits and solar cells, where they act as heater tubes, wafer boats (susceptors), and diffusion chambers.
Their ability to endure heats in oxidizing, reducing, or inert atmospheres– combined with reduced metallic contamination– ensures procedure pureness and yield.
During chemical vapor deposition (CVD) or thermal oxidation, quartz parts preserve dimensional security and stand up to bending, stopping wafer damage and misalignment.
In photovoltaic manufacturing, quartz crucibles are utilized to expand monocrystalline silicon ingots through the Czochralski procedure, where their purity straight affects the electrical high quality of the final solar batteries.
4.2 Usage in Lights, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lights and UV sanitation systems, quartz ceramic envelopes have plasma arcs at temperatures surpassing 1000 ° C while sending UV and visible light efficiently.
Their thermal shock resistance stops failing during fast lamp ignition and closure cycles.
In aerospace, quartz porcelains are made use of in radar windows, sensing unit real estates, and thermal protection systems due to their reduced dielectric consistent, high strength-to-density proportion, and security under aerothermal loading.
In logical chemistry and life sciences, merged silica veins are crucial in gas chromatography (GC) and capillary electrophoresis (CE), where surface area inertness prevents sample adsorption and guarantees precise separation.
Furthermore, quartz crystal microbalances (QCMs), which count on the piezoelectric buildings of crystalline quartz (unique from integrated silica), use quartz ceramics as safety real estates and protecting assistances in real-time mass picking up applications.
Finally, quartz ceramics represent a special junction of extreme thermal resilience, optical transparency, and chemical purity.
Their amorphous framework and high SiO ₂ content allow efficiency in settings where conventional products stop working, from the heart of semiconductor fabs to the side of room.
As technology advancements towards higher temperature levels, better accuracy, and cleaner processes, quartz ceramics will continue to serve as a critical enabler of technology throughout science and market.
