1. Chemical Framework and Molecular Device
1.1 Synthesis and Molecular Style

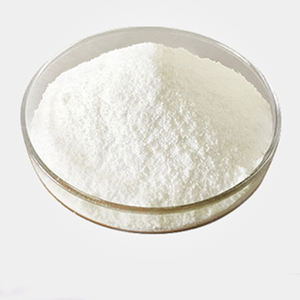

(Naphthalene Sulfonate Superplasticizer)
Naphthalene sulfonate formaldehyde condensate (NSF), commonly referred to as naphthalene sulfonate superplasticizer, is an artificial water-reducing admixture commonly used in high-performance concrete to improve flowability without endangering structural integrity.
It is generated through a multi-step chemical process entailing the sulfonation of naphthalene with focused sulfuric acid to form naphthalene sulfonic acid, adhered to by formaldehyde condensation under regulated temperature and pH problems to produce a polymer with repeating aromatic systems linked by methylene bridges.
The resulting particle includes a hydrophobic naphthalene backbone and multiple hydrophilic sulfonate (-SO FOUR ⁻) teams, producing a comb-like polyelectrolyte structure that allows strong communication with cement fragments in liquid settings.
This amphiphilic architecture is main to its distributing feature, enabling the polymer to adsorb onto the surface area of cement hydrates and impart electrostatic repulsion between bits.
The degree of sulfonation and polymerization can be adjusted during synthesis to tailor the molecular weight and charge thickness, straight influencing diffusion effectiveness and compatibility with various concrete types.
1.2 Dispersion System in Cementitious Solutions
When added to fresh concrete, NSF features mainly with electrostatic repulsion, a device unique from steric barrier used by more recent polycarboxylate-based superplasticizers.
Upon blending, the hydrophobic naphthalene rings adsorb onto the favorably billed sites of tricalcium silicate (C TWO S) and other cement phases, while the adversely billed sulfonate teams prolong right into the pore remedy, developing a strong negative surface possibility.
This produces an electrical dual layer around each cement particle, causing them to fend off one another and neutralizing the natural propensity of great bits to flocculate as a result of van der Waals pressures.
Therefore, the entrapped water within flocs is launched, boosting the fluidness of the mix and allowing substantial reductions in water content– typically 15– 25%– while preserving workability.
This improved dispersion leads to an extra uniform microstructure, reduced porosity, and improved mechanical strength advancement with time.
However, the effectiveness of NSF reduces with extended blending or high temperatures because of desorption and downturn loss, a restriction that influences its application in long-haul transportation or hot climates.
( Naphthalene Sulfonate Superplasticizer)
2. Performance Characteristics and Design Benefits
2.1 Workability and Circulation Enhancement
Among the most instant advantages of naphthalene sulfonate superplasticizer is its ability to substantially raise the slump of concrete, making it very flowable and easy to area, pump, and settle, especially in densely reinforced structures.
This improved workability permits the construction of complex building kinds and minimizes the demand for mechanical vibration, reducing labor prices and the danger of honeycombing or spaces.
NSF is particularly efficient in creating self-consolidating concrete (SCC) when made use of in combination with viscosity-modifying agents and other admixtures, making certain complete mold loading without segregation.
The degree of fluidness gain depends on dosage, normally varying from 0.5% to 2.0% by weight of cement, past which decreasing returns or perhaps retardation may occur.
Unlike some organic plasticizers, NSF does not introduce extreme air entrainment, preserving the thickness and toughness of the end product.
2.2 Strength and Durability Improvements
By allowing reduced water-to-cement (w/c) ratios, NSF plays a critical function in enhancing both very early and long-term compressive and flexural stamina of concrete.
A reduced w/c ratio decreases capillary porosity, leading to a denser, much less permeable matrix that withstands the ingress of chlorides, sulfates, and wetness– essential factors in preventing reinforcement rust and sulfate strike.
This enhanced impermeability prolongs service life in aggressive atmospheres such as marine structures, bridges, and wastewater treatment centers.
Additionally, the consistent dispersion of cement bits advertises more complete hydration, speeding up toughness gain and reducing shrinking cracking threats.
Studies have revealed that concrete including NSF can attain 20– 40% higher compressive strength at 28 days contrasted to control mixes, depending upon mix design and treating problems.
3. Compatibility and Application Considerations
3.1 Interaction with Cement and Supplementary Materials
The efficiency of naphthalene sulfonate superplasticizer can vary dramatically depending upon the composition of the cement, particularly the C THREE A (tricalcium aluminate) web content and antacid levels.
Concretes with high C TWO A have a tendency to adsorb more NSF because of stronger electrostatic interactions, possibly requiring higher dosages to accomplish the wanted fluidness.
In a similar way, the existence of supplementary cementitious materials (SCMs) such as fly ash, slag, or silica fume affects adsorption kinetics and rheological habits; as an example, fly ash can complete for adsorption sites, altering the efficient dosage.
Blending NSF with other admixtures like retarders, accelerators, or air-entraining representatives calls for careful compatibility screening to avoid unfavorable communications such as rapid slump loss or flash collection.
Batching sequence– whether NSF is included before, during, or after blending– likewise affects diffusion performance and need to be standardized in massive procedures.
3.2 Environmental and Handling Elements
NSF is available in liquid and powder forms, with liquid solutions supplying much easier dosing and faster dissolution in blending water.
While generally secure under regular storage space conditions, extended exposure to freezing temperature levels can trigger rainfall, and high heat may degrade the polymer chains gradually.
From an ecological viewpoint, NSF is thought about reduced poisoning and non-corrosive, though appropriate handling methods need to be followed to stay clear of breathing of powder or skin irritation.
Its production entails petrochemical by-products and formaldehyde, raising sustainability problems that have actually driven study into bio-based choices and greener synthesis routes.
4. Industrial Applications and Future Expectation
4.1 Usage in Precast, Ready-Mix, and High-Strength Concrete
Naphthalene sulfonate superplasticizer is extensively made use of in precast concrete production, where precise control over setup time, surface coating, and dimensional accuracy is important.
In ready-mixed concrete, it makes it possible for long-distance transport without sacrificing workability upon arrival at building and construction sites.
It is additionally an essential part in high-strength concrete (HSC) and ultra-high-performance concrete (UHPC), where very low w/c proportions are needed to achieve compressive staminas surpassing 100 MPa.
Passage linings, skyscrapers, and prestressed concrete aspects gain from the boosted resilience and structural effectiveness offered by NSF-modified blends.
4.2 Fads and Obstacles in Admixture Technology
Despite the development of more advanced polycarboxylate ether (PCE) superplasticizers with exceptional slump retention and lower dosage demands, NSF stays widely made use of because of its cost-effectiveness and tried and tested efficiency.
Continuous research concentrates on crossbreed systems combining NSF with PCEs or nanomaterials to enhance rheology and stamina growth.
Efforts to boost biodegradability, lower formaldehyde exhausts throughout manufacturing, and boost compatibility with low-carbon cements show the market’s shift towards sustainable building and construction materials.
In conclusion, naphthalene sulfonate superplasticizer represents a keystone technology in contemporary concrete engineering, linking the space between standard techniques and progressed product efficiency.
Its capability to change concrete into a very convenient yet sturdy composite remains to sustain worldwide infrastructure development, also as next-generation admixtures advance.
