Bearings are frequently called the “joints of industry.” Getting the choice right straight impacts your equipment’s reliability, life span, and upkeep costs. Many bearing failings do not come from poor quality– they originate from incorrect choices. Points like tons estimation mistakes, overlooking rate limitations, or choosing the incorrect lubrication method. These small errors can create tools to break down early in its life span. This overview strolls you through the whole selection procedure, providing designers and purchase experts a clear course from evaluating working conditions to confirming the ideal bearing design.
Part One: What You Need to Know Before Beginning
Prior to you open any kind of bearing directory, ask yourself one concern: What exactly does this equipment require the bearing to do? The response lies in five essential locations:
1. Tons Features
Lots is the leading consider birthing choice. You need to figure out 3 points:
Direction: Is it radial tons (vertical to the shaft), axial lots (alongside the shaft), or a mix of both?
Dimension: Is it light, modest, or heavy? Any type of effect tons?
Nature: Is the load constant or changing? Just how usually do effect loads occur and just how solid are they?
Take a belt conveyor as an example. The bearings at the drive end take on radial loads from belt stress, the weight of the belt and rollers, plus the shaft setting up. When determining, you have to think about various operating problems– start-up, normal operating, stopping– and utilize the worst-case scenario for your layout.
2. Speed Problems
(bearings for steel mill)
Speed is an additional crucial element impacting bearing life. According to fatigue life concept, birthing life has an inverted connection with rate. For variable rate conditions, you need to compute the equivalent rate. Take a rotary kiln assistance roller– its speed might range from 0.5 to 2.5 r/min. You would certainly require to weight the running time at each rate to get an equivalent value.
One thing to keep an eye out for: knowing only the maximum speed can screw up your lubrication approach. The lubricant you select based on full throttle could not form an appropriate oil film at reduced speeds. Additionally, if your equipment has long idle periods, you should state that– otherwise close-by devices vibrations might trigger false brinelling damages.
3. Required Service Life
Bearing service life is normally shared as L10h (the variety of hours that 90% of a bearing team will certainly get to before exhaustion spalling appears). A typical mistake is going with an extremely long life– as soon as L10h exceeds 100,000 hours, the bearing size gets too large. It becomes more difficult to lube, torque boosts, and it comes to be much more sensitive to minimum tons. Ultimately, it may stop working for factors apart from tiredness.
4. Room Restraints
You ought to know your offered room limitations from the start– shaft size variety, housing bore size, axial size limitations. As soon as you know the matching shaft size and available room, you can rapidly limit your choices.
5. Running Accuracy Demands
The majority of applications do simply great with common accuracy bearings. But also for high-speed or high-precision tools like device spindles, you’ll require P5, P4, or even higher qualities. Just keep in mind that going with greater precision without an actual demand will increase expenses dramatically. Suit the grade to your real demands.
Sequel: Matching Bearing Kinds to Working Conditions
As soon as you have those parameters clear, the following action is to match the best bearing kind based on tons direction, size, rate, and imbalance tolerance.
1. Lots Direction: Radial, Axial, or Integrated?
This is the most fundamental filter. It can aim you to a couple of candidates immediately:

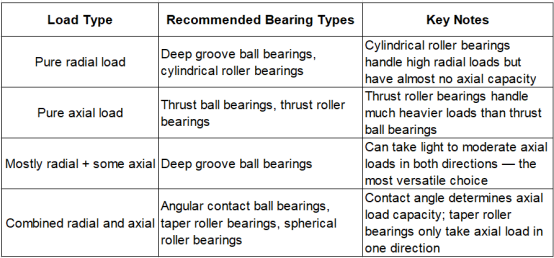

When the axial-to-radial lots ratio (Fa/Fr) modifications, your choice logic modifications also. At reduced proportions, opt for deep groove round bearings. At modest ratios, make use of small-contact-angle angular get in touch with bearings or taper roller bearings. At high proportions, you’ll require large-contact-angle bearings, or consider integrating a drive bearing with a radial bearing.
( Radial)
2. Load Dimension: Round Bearings or Roller Bearings?
This is a timeless option:
Light or modest lots: Opt for round bearings (deep groove or angular call). The point contact in between rounds and raceways offers reduced rubbing, making them ideal for medium to broadband.
Hefty or effect lots: You have to utilize roller bearings (round, spherical, or taper). Line get in touch with between rollers and raceways offers much higher tons capability and better impact resistance.
3. Speed: Sphere Bearings for High Speed, Roller Bearings for Low
Usually talking, round bearings have higher rate restrictions than roller bearings. For high-speed applications (over 1000 r/min), put sphere bearings on top of your listing. When you need the greatest possible rate with pure radial tons, open deep groove round bearings are your best option. For combined tons at broadband, angular get in touch with ball bearings are the way to go.
Cylindrical roller bearings, taper roller bearings, and needle bearings have reasonably reduced rate limitations. They’re primarily fit for low-to-medium speed, heavy-load conditions.
4. Misalignment Resistance: Do You Required Self-Aligning?
This frequently gets forgotten but it’s extremely important. You need to take into consideration self-aligning bearings when:
Birthing real estate bores do not align well
The shaft isn’t rigid enough and bends throughout operation
The bearing period is long and thermal growth causes angular imbalance
You’re utilizing different split housings (like pillow block bearings)
Spherical roller bearings and round bearings have scooped external ring raceways. This enables a specific quantity of angular imbalance in between the inner and outer rings without damaging edge tension. They can make up for both vibrant deflection and fixed installment mistakes.
On the various other hand, round roller bearings, taper roller bearings, and needle bearings have extremely minimal self-aligning capability. Also a tiny angular imbalance can create anxiety focus at the roller ends, causing high side pressures that substantially reduce bearing life. Deep groove round bearings do have some self-aligning capacity, however the allowed angle is tiny– surpassing it will certainly decrease life as well.
5. Axial Development Compensation: Fixed End or Drifting End?
Long shafts expand and agreement with temperature changes throughout operation. That suggests you require to establish your bearing arrangement with one set end and one floating end.
NU and N collection round roller bearings have no flanges on the inner ring (or on one side). This lets the shaft relocation openly in the axial direction relative to the housing– making them excellent as floating-end bearings. NJ and NUP collection can supply axial positioning in one or both instructions, so they work well as fixed-end bearings. This setup is really common in gearboxes and electric motors.

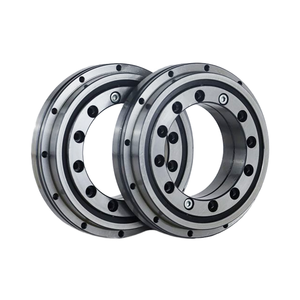

Component 3: BMB Product Line at a Look

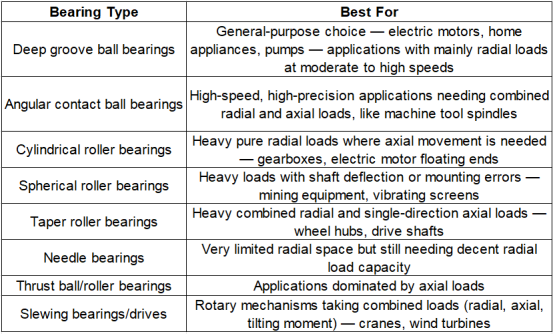

BMB supplies a complete series of industrial bearings, covering all the major types we’ve reviewed. This fast referral table links the selection principles over directly to details item groups:
Part 4: Diving Deeper– Accuracy, Clearance, Lubrication, and Seals
( Axial)
1. Accuracy Grades
Standard accuracy (P0) works for the large majority of general equipment. For precision tools like maker tool pins or aerospace parts, you’ll require P5 or higher. Tighter precision suggests tighter dimensional tolerances and better running accuracy– yet also greater expenses.
2. Interior Clearance and Preload
Bearings require to preserve proper interior clearance after installation. Excessive clearance results in vibration and noise. Too little, and thermal expansion can cause the bearing to seize. In grandfather clauses like device tool pins, preload (using negative clearance) is used to boost system rigidness and rotational precision.
3. Lubricant Option
Lubrication is a make-or-break element for birthing life. Oil benefits the majority of moderate-speed and temperature applications– it’s basic to seal and can run maintenance-free for extended periods. Oil (oil bath, oil mist, jet lubrication) is better for high-speed or high-temperature problems, as it dissipates warmth more effectively. When choosing a lubricant, inspect the speed factor (ndm worth). Don’t simply pick based upon maximum speed– the oil you pick may not develop a proper film at lower speeds.
4. Sealing Arrangements
Pick the seal type based on your atmosphere: get in touch with seals keep dust out well but include some rubbing; non-contact seals help high speeds however supply much less protection versus contamination; open bearings depend on external sealing systems.
Component 5: Life Estimation– From Concept to Practice
( or Combined Basic Filter Table)
At the end of the day, you require to validate whether your picked bearing will actually fulfill the predicted life span. This is where standard score life calculation comes in.
The fundamental score life L10 formula (ISO 281 criterion):
For round bearings: L10 = (C/P) SIX × (10 ⁶/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 SIX/ 60n) hours
Where:
C: basic dynamic tons score (kN)– located in the item brochure
P: equal vibrant load (kN)– takes both radial and axial loads into account
The equal vibrant lots P is determined as: P = X · Fr + Y · Fa
Fr is the radial lots, Fa is the axial lots
X and Y are coefficients that depend on bearing kind and the Fa/Fr proportion– inspect the directory for these values
For even more requiring problems, you can apply modification factors: Ln = a1 × a2 × a3 × L10
a1 is the dependability variable (a1 = 1 for 90% reliability, about 0.21 for 99%)
a2 is the material aspect (top notch bearing steel can reach 1.5 to 2)
a3 is the operating conditions factor (great lubrication and cleanliness can provide 2 to 3)
With this estimation, engineers can verify that the chosen bearing fulfills the required service life. It additionally assists contrast multiple alternatives and make data-driven decisions.
This guide has strolled you via the total selection course– from assessing working conditions, to matching the appropriate bearing kind, to verifying life span. Comprehending and applying this method will assist you make accurate, reliable, and cost-efficient bearing decisions across a large range of commercial applications.
