Intro to Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic product that has obtained prevalent recognition for its phenomenal thermal conductivity, electrical insulation, and mechanical security at elevated temperature levels. With a hexagonal wurtzite crystal framework, AlN displays a distinct mix of residential properties that make it the most optimal substratum product for applications in electronics, optoelectronics, power components, and high-temperature settings. Its ability to effectively dissipate warmth while preserving outstanding dielectric toughness positions AlN as a superior choice to traditional ceramic substratums such as alumina and beryllium oxide. This write-up discovers the fundamental attributes of light weight aluminum nitride ceramics, delves into fabrication techniques, and highlights its critical functions throughout innovative technical domain names.

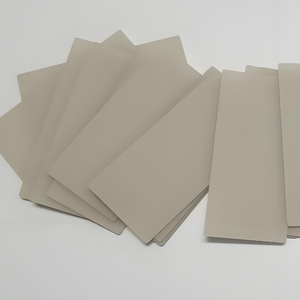

(Aluminum Nitride Ceramics)
Crystal Framework and Fundamental Properties
The performance of aluminum nitride as a substratum product is greatly determined by its crystalline framework and innate physical properties. AlN embraces a wurtzite-type lattice made up of alternating light weight aluminum and nitrogen atoms, which adds to its high thermal conductivity– commonly surpassing 180 W/(m · K), with some high-purity examples achieving over 320 W/(m · K). This value considerably exceeds those of other widely made use of ceramic products, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal efficiency, AlN has a broad bandgap of roughly 6.2 eV, resulting in excellent electrical insulation residential properties also at heats. It additionally demonstrates low thermal expansion (CTE ≈ 4.5 × 10 ⁻⁶/ K), which carefully matches that of silicon and gallium arsenide, making it an optimal match for semiconductor gadget product packaging. In addition, AlN displays high chemical inertness and resistance to thaw metals, enhancing its suitability for extreme settings. These combined qualities establish AlN as a top candidate for high-power digital substratums and thermally managed systems.
Fabrication and Sintering Technologies
Producing high-quality light weight aluminum nitride ceramics needs accurate powder synthesis and sintering strategies to attain dense microstructures with marginal contaminations. As a result of its covalent bonding nature, AlN does not quickly compress through standard pressureless sintering. As a result, sintering aids such as yttrium oxide (Y TWO O SIX), calcium oxide (CaO), or rare planet components are commonly included in promote liquid-phase sintering and improve grain boundary diffusion.
The fabrication procedure generally starts with the carbothermal reduction of light weight aluminum oxide in a nitrogen environment to synthesize AlN powders. These powders are then grated, formed using methods like tape casting or shot molding, and sintered at temperature levels in between 1700 ° C and 1900 ° C under a nitrogen-rich atmosphere. Hot pushing or trigger plasma sintering (SPS) can further enhance thickness and thermal conductivity by minimizing porosity and promoting grain placement. Advanced additive production techniques are likewise being checked out to produce complex-shaped AlN parts with tailored thermal monitoring abilities.
Application in Digital Product Packaging and Power Modules
Among the most noticeable uses of aluminum nitride porcelains remains in digital packaging, specifically for high-power gadgets such as insulated gate bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power thickness raise in contemporary electronics, effective warm dissipation comes to be vital to ensure integrity and durability. AlN substratums provide an ideal solution by combining high thermal conductivity with excellent electric seclusion, preventing short circuits and thermal runaway conditions.
In addition, AlN-based direct bonded copper (DBC) and active steel brazed (AMB) substratums are significantly used in power component styles for electrical vehicles, renewable energy inverters, and commercial electric motor drives. Compared to conventional alumina or silicon nitride substratums, AlN provides faster warm transfer and better compatibility with silicon chip coefficients of thermal expansion, therefore decreasing mechanical stress and anxiety and enhancing general system efficiency. Continuous research study intends to boost the bonding toughness and metallization strategies on AlN surfaces to more expand its application extent.
Use in Optoelectronic and High-Temperature Gadget
Beyond digital product packaging, light weight aluminum nitride ceramics play an important duty in optoelectronic and high-temperature applications as a result of their transparency to ultraviolet (UV) radiation and thermal security. AlN is extensively used as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, specifically in applications calling for sanitation, sensing, and optical interaction. Its vast bandgap and low absorption coefficient in the UV array make it an excellent prospect for supporting aluminum gallium nitride (AlGaN)-based heterostructures.
Additionally, AlN’s capacity to work dependably at temperature levels exceeding 1000 ° C makes it suitable for usage in sensors, thermoelectric generators, and elements subjected to extreme thermal tons. In aerospace and defense industries, AlN-based sensor plans are utilized in jet engine surveillance systems and high-temperature control systems where conventional products would fail. Constant developments in thin-film deposition and epitaxial development methods are expanding the capacity of AlN in next-generation optoelectronic and high-temperature incorporated systems.
( Aluminum Nitride Ceramics)
Environmental Security and Long-Term Integrity
An essential factor to consider for any kind of substrate material is its lasting dependability under operational anxieties. Light weight aluminum nitride shows premium ecological stability contrasted to lots of various other porcelains. It is very resistant to rust from acids, antacid, and molten steels, guaranteeing resilience in hostile chemical environments. Nevertheless, AlN is at risk to hydrolysis when exposed to wetness at raised temperature levels, which can weaken its surface and minimize thermal efficiency.
To reduce this problem, safety coatings such as silicon nitride (Si two N ₄), aluminum oxide, or polymer-based encapsulation layers are often applied to enhance dampness resistance. Furthermore, mindful sealing and product packaging techniques are implemented throughout tool assembly to maintain the honesty of AlN substrates throughout their service life. As environmental policies end up being a lot more stringent, the non-toxic nature of AlN likewise places it as a recommended option to beryllium oxide, which presents health risks during processing and disposal.
Conclusion
Aluminum nitride porcelains represent a course of innovative materials uniquely fit to attend to the growing demands for effective thermal monitoring and electrical insulation in high-performance digital and optoelectronic systems. Their extraordinary thermal conductivity, chemical stability, and compatibility with semiconductor innovations make them one of the most excellent substrate material for a large range of applications– from auto power components to deep UV LEDs and high-temperature sensing units. As fabrication technologies remain to develop and cost-effective manufacturing methods develop, the adoption of AlN substratums is expected to climb dramatically, driving innovation in next-generation digital and photonic gadgets.
