1. Product Basics and Microstructural Layout
1.1 Composition and Crystallographic Stability of Alumina
(Alumina Ceramic Nozzles)
Alumina (Al ₂ O SIX), especially in its alpha phase, is a totally oxidized ceramic with a corundum-type hexagonal close-packed framework, supplying exceptional thermal security, chemical inertness, and mechanical strength at elevated temperature levels.
High-purity alumina (usually 95– 99.9% Al Two O ₃) is favored for nozzle applications because of its marginal impurity material, which lowers grain limit weakening and improves resistance to thermal and chemical deterioration.
The microstructure, containing penalty, equiaxed grains, is engineered throughout sintering to minimize porosity and take full advantage of density, directly influencing the nozzle’s erosion resistance and structural honesty under high-velocity fluid circulation.
Ingredients such as MgO are typically introduced in trace amounts to hinder irregular grain growth during sintering, making sure an uniform microstructure that supports long-lasting dependability.
1.2 Mechanical and Thermal Properties Relevant to Nozzle Performance
Alumina porcelains display a Vickers hardness going beyond 1800 HV, making them very resistant to unpleasant wear from particulate-laden liquids, a crucial quality in applications such as sandblasting and rough waterjet cutting.
With a flexural stamina of 300– 500 MPa and a compressive stamina over 2 Grade point average, alumina nozzles maintain dimensional stability under high-pressure operation, commonly ranging from 100 to 400 MPa in industrial systems.
Thermally, alumina preserves its mechanical buildings as much as 1600 ° C, with a low thermal growth coefficient (~ 8 × 10 ⁻⁶/ K) that supplies outstanding resistance to thermal shock– crucial when subjected to quick temperature variations during start-up or shutdown cycles.
Its thermal conductivity (~ 30 W/m · K) is sufficient to dissipate localized heat without causing thermal slopes that can lead to splitting, balancing insulation and warmth monitoring demands.
2. Manufacturing Processes and Geometric Precision
2.1 Shaping and Sintering Methods for Nozzle Fabrication
The production of alumina ceramic nozzles begins with high-purity alumina powder, which is processed into a green body making use of techniques such as cold isostatic pressing (CIP), injection molding, or extrusion, depending upon the wanted geometry and batch size.

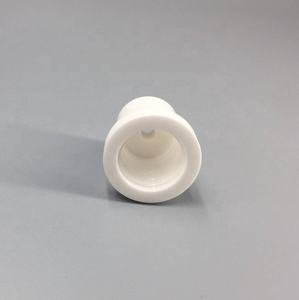

( Alumina Ceramic Nozzles)
Cold isostatic pressing uses consistent pressure from all instructions, generating a homogeneous thickness distribution critical for reducing defects during sintering.
Shot molding is employed for complex nozzle forms with internal tapers and fine orifices, permitting high dimensional accuracy and reproducibility in automation.
After forming, the eco-friendly compacts undertake a two-stage thermal treatment: debinding to remove natural binders and sintering at temperatures in between 1500 ° C and 1650 ° C to attain near-theoretical density via solid-state diffusion.
Accurate control of sintering atmosphere and heating/cooling rates is important to protect against warping, breaking, or grain coarsening that might endanger nozzle efficiency.
2.2 Machining, Polishing, and Quality Control
Post-sintering, alumina nozzles commonly need precision machining to attain tight resistances, particularly in the orifice area where circulation characteristics are most conscious surface coating and geometry.
Ruby grinding and splashing are made use of to improve inner and outside surfaces, attaining surface roughness worths listed below 0.1 µm, which decreases circulation resistance and protects against particle accumulation.
The orifice, commonly varying from 0.3 to 3.0 mm in diameter, must be free of micro-cracks and chamfers to make certain laminar circulation and consistent spray patterns.
Non-destructive testing methods such as optical microscopy, X-ray examination, and stress cycling tests are employed to confirm architectural stability and performance uniformity prior to release.
Custom geometries, including convergent-divergent (de Laval) profiles for supersonic flow or multi-hole ranges for fan spray patterns, are significantly fabricated making use of sophisticated tooling and computer-aided design (CAD)-driven manufacturing.
3. Functional Benefits Over Alternate Nozzle Products
3.1 Superior Disintegration and Deterioration Resistance
Compared to metal (e.g., tungsten carbide, stainless-steel) or polymer nozzles, alumina shows much better resistance to unpleasant wear, specifically in environments involving silica sand, garnet, or other difficult abrasives utilized in surface prep work and cutting.
Metal nozzles break down quickly as a result of micro-fracturing and plastic contortion, needing regular replacement, whereas alumina nozzles can last 3– 5 times longer, substantially decreasing downtime and operational prices.
Additionally, alumina is inert to most acids, antacid, and solvents, making it appropriate for chemical splashing, etching, and cleaning procedures where metallic parts would wear away or infect the fluid.
This chemical security is especially beneficial in semiconductor production, pharmaceutical processing, and food-grade applications requiring high pureness.
3.2 Thermal and Electric Insulation Characteristic
Alumina’s high electric resistivity (> 10 ¹⁴ Ω · centimeters) makes it ideal for use in electrostatic spray covering systems, where it stops charge leakage and makes certain uniform paint atomization.
Its thermal insulation ability allows risk-free procedure in high-temperature spraying environments, such as flame spraying or thermal cleansing, without warmth transfer to bordering components.
Unlike steels, alumina does not catalyze undesirable chemical reactions in responsive fluid streams, maintaining the honesty of delicate solutions.
4. Industrial Applications and Technological Impact
4.1 Functions in Abrasive Jet Machining and Surface Treatment
Alumina ceramic nozzles are indispensable in rough blasting systems for rust removal, paint stripping, and surface texturing in automotive, aerospace, and building industries.
Their ability to keep a constant orifice size over expanded use ensures consistent abrasive velocity and effect angle, straight affecting surface area coating high quality and procedure repeatability.
In rough waterjet cutting, alumina concentrating tubes lead the high-pressure water-abrasive blend, enduring erosive pressures that would swiftly break down softer products.
4.2 Use in Additive Production, Spray Coating, and Fluid Control
In thermal spray systems, such as plasma and flame spraying, alumina nozzles direct high-temperature gas flows and liquified particles onto substratums, gaining from their thermal shock resistance and dimensional stability.
They are also utilized in precision spray nozzles for farming chemicals, inkjet systems, and fuel atomization, where wear resistance makes sure lasting dosing precision.
In 3D printing, particularly in binder jetting and material extrusion, alumina nozzles deliver fine powders or thick pastes with marginal blocking or put on.
Arising applications include microfluidic systems and lab-on-a-chip gadgets, where miniaturized alumina elements use longevity and biocompatibility.
In recap, alumina ceramic nozzles represent an important crossway of materials science and industrial engineering.
Their exceptional mix of hardness, thermal stability, and chemical resistance makes it possible for trusted performance in a few of the most demanding fluid handling environments.
As commercial procedures push towards greater stress, finer tolerances, and much longer solution intervals, alumina porcelains continue to set the criterion for long lasting, high-precision circulation control components.
